Rapid Biological Indicator Reader

Time: 2014-05-28
Views: 4775
Category: Infection Control
Type: Accessories
Product Details


UG-AR series Auto Reader is designed to read the incubation results of UGBI series Rapid Readout Biological Indicator of 20mins to 4hrs for   STEAM  ,

  VH2O2    EO    and   FORM       sterilization. The readout time is one of the shortest in the whole industry, and in the meantime the top level result-consistence comparing to incubation results after 24hrs/48hrs.




INTRODUCTION

UG-AR series Auto Reader and SCBI adopts spectrum analysis technology to monitor the fluorescence changes of the Bacillus Stearothermophilus or Bacillus Subtilis with special enzyme to rapidly judge whether there is surviving spores.

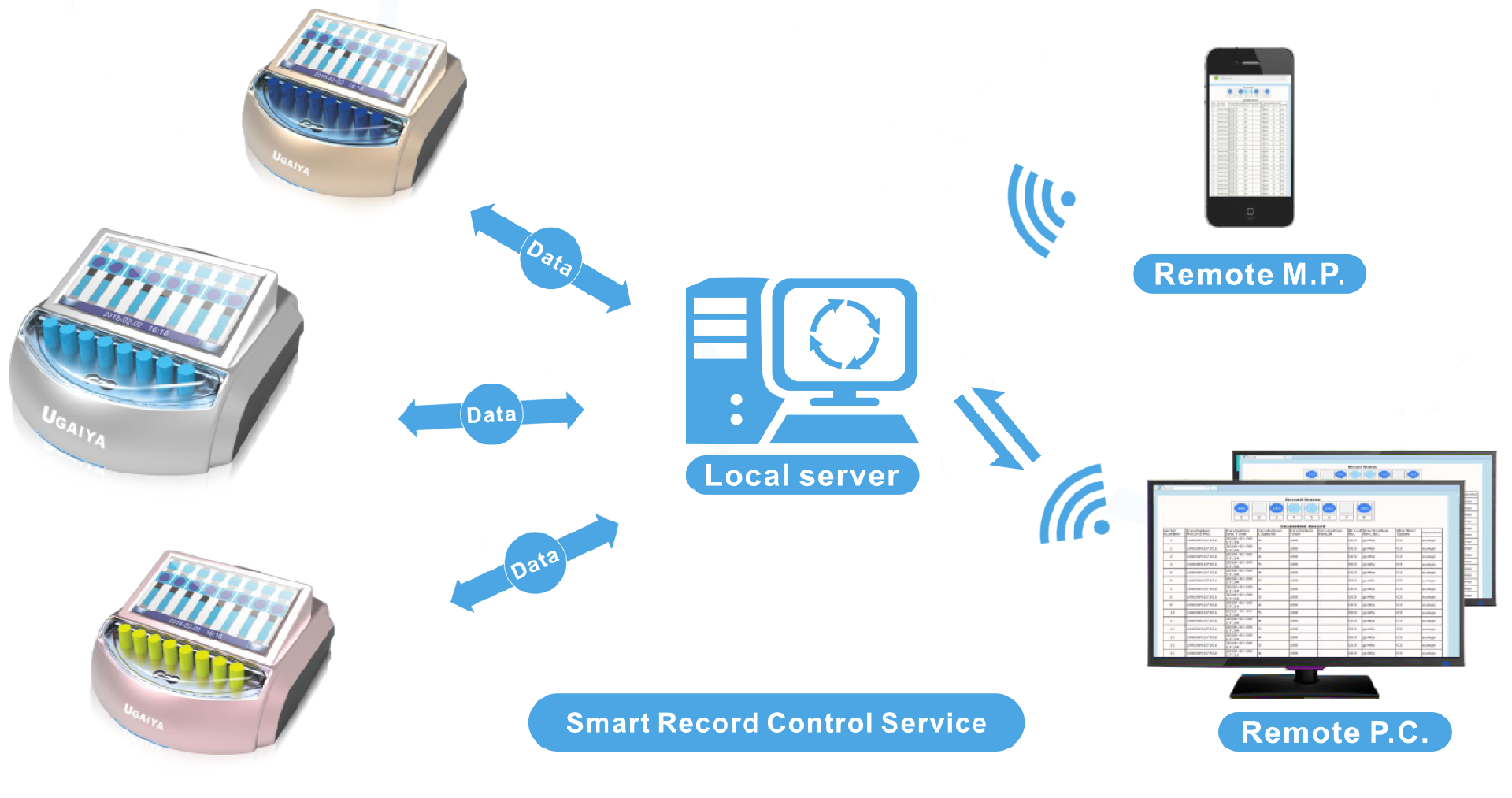

Rapid Readers are widely used to validate the sterilization performance of sterilizers. It is able to make judgments within 4mins to 4 hours, depending on different UGBI models, to ensure implantation operations can be carried out in time; and in the meantime, a report can be printed for traceability.

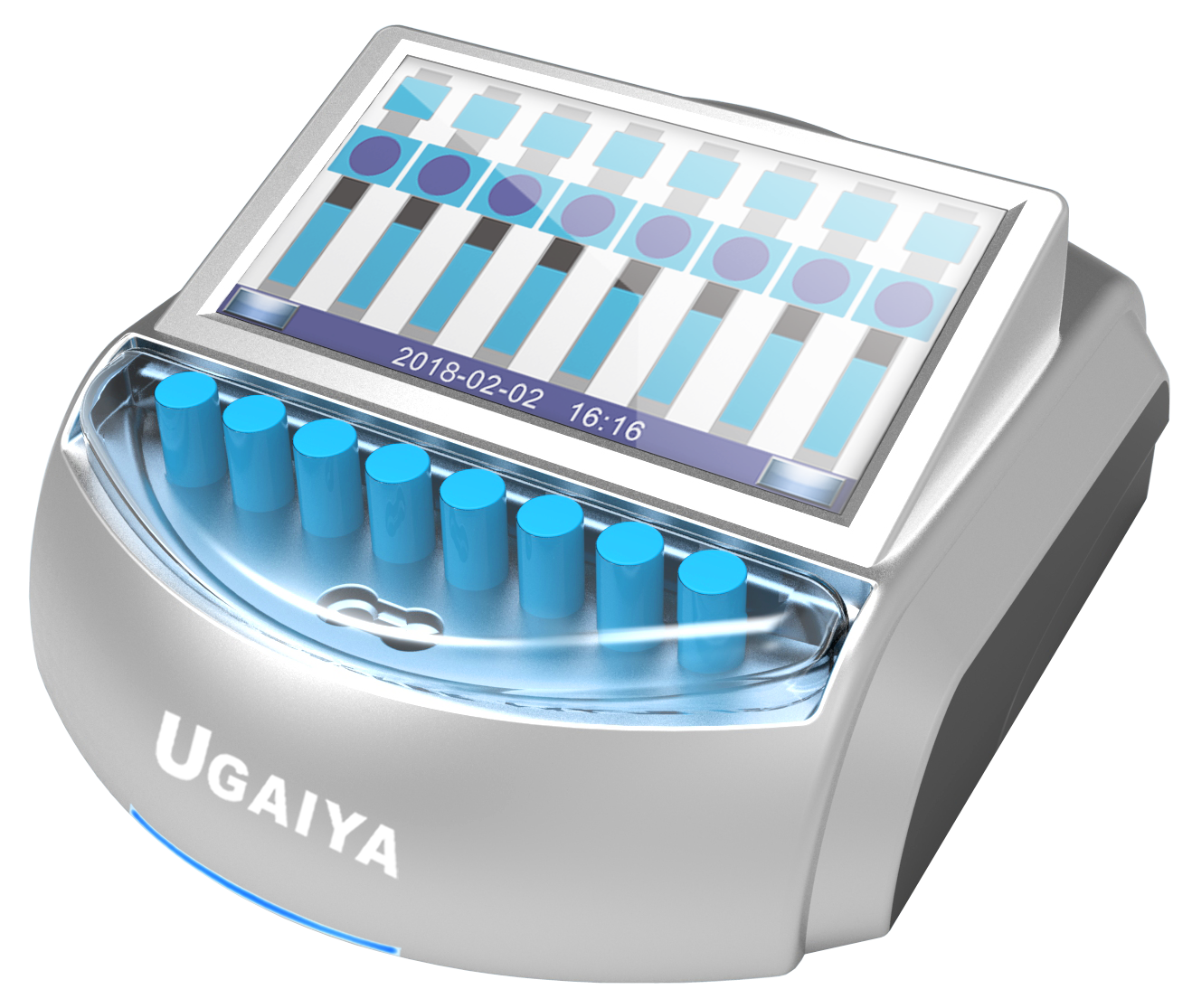

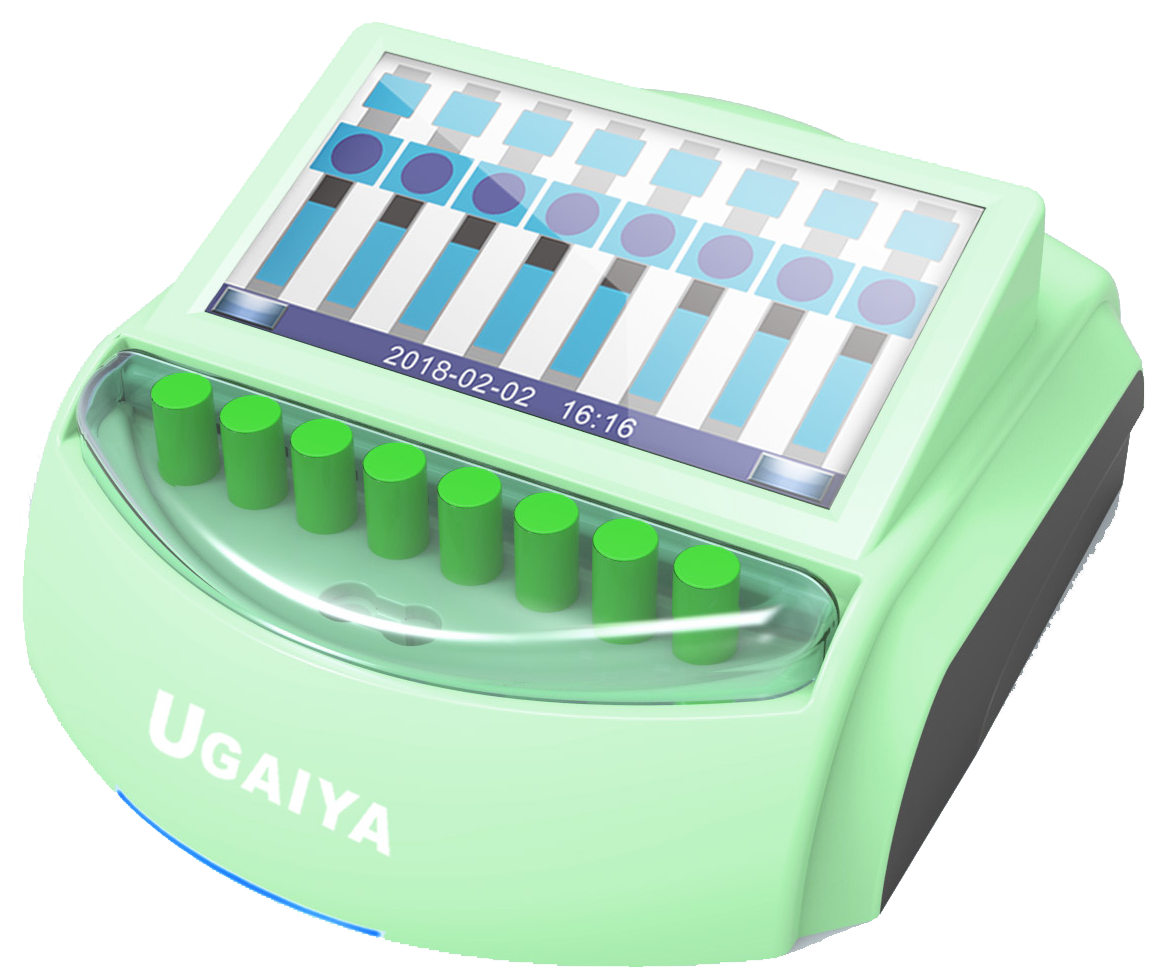

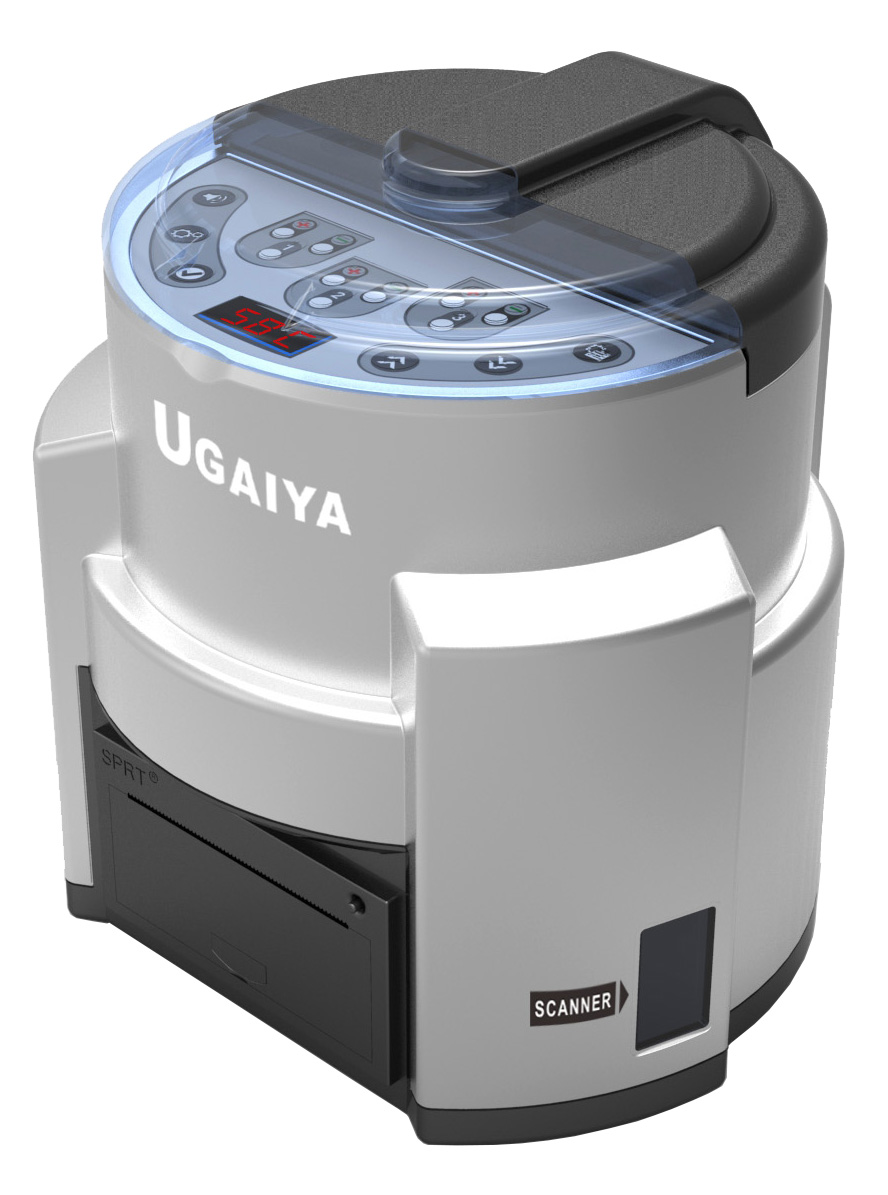

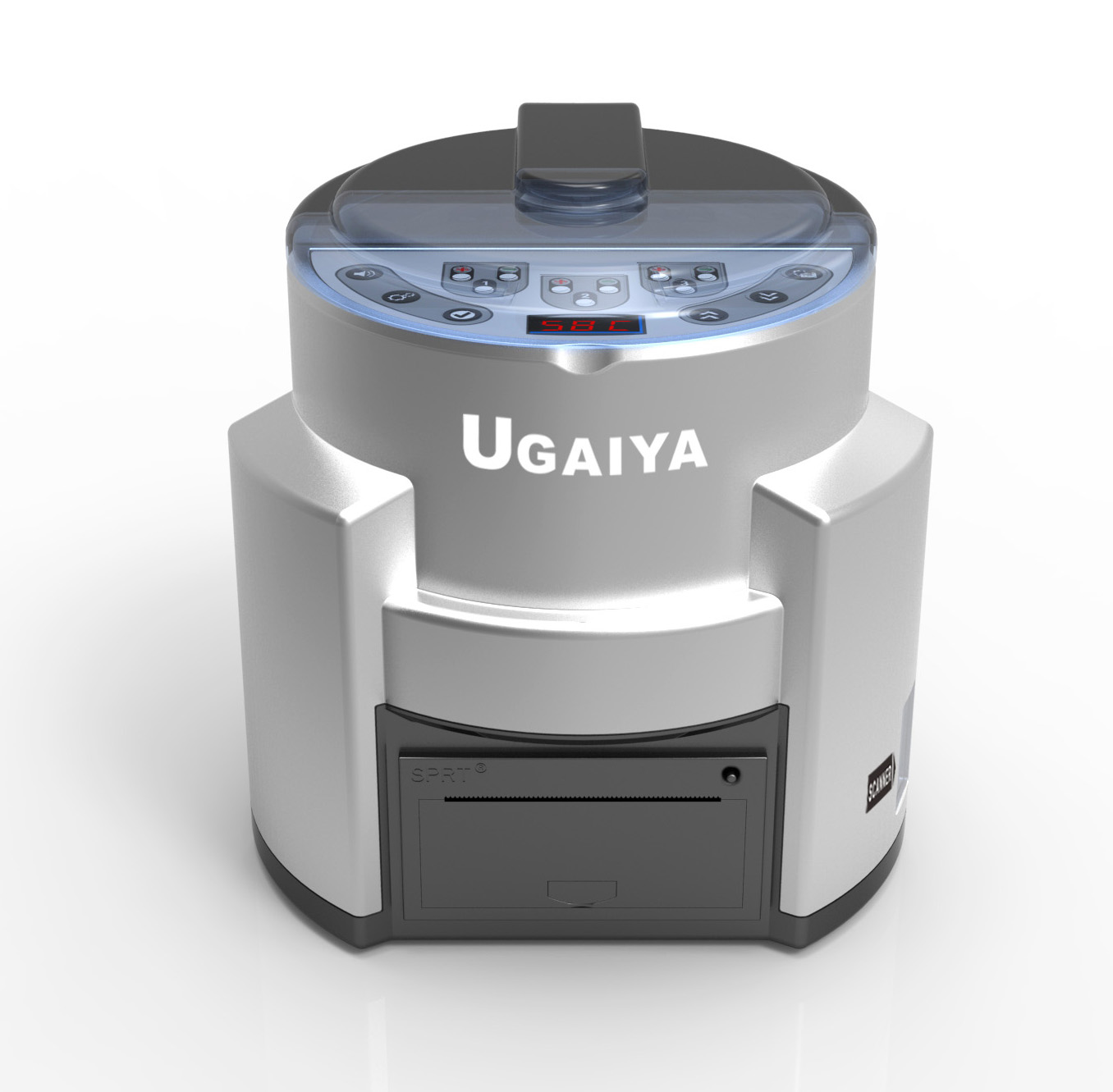

UG-AR400 (6 in 1 Reader)                                               UG-AR200 (6 in 1 Reader) Mini Reader

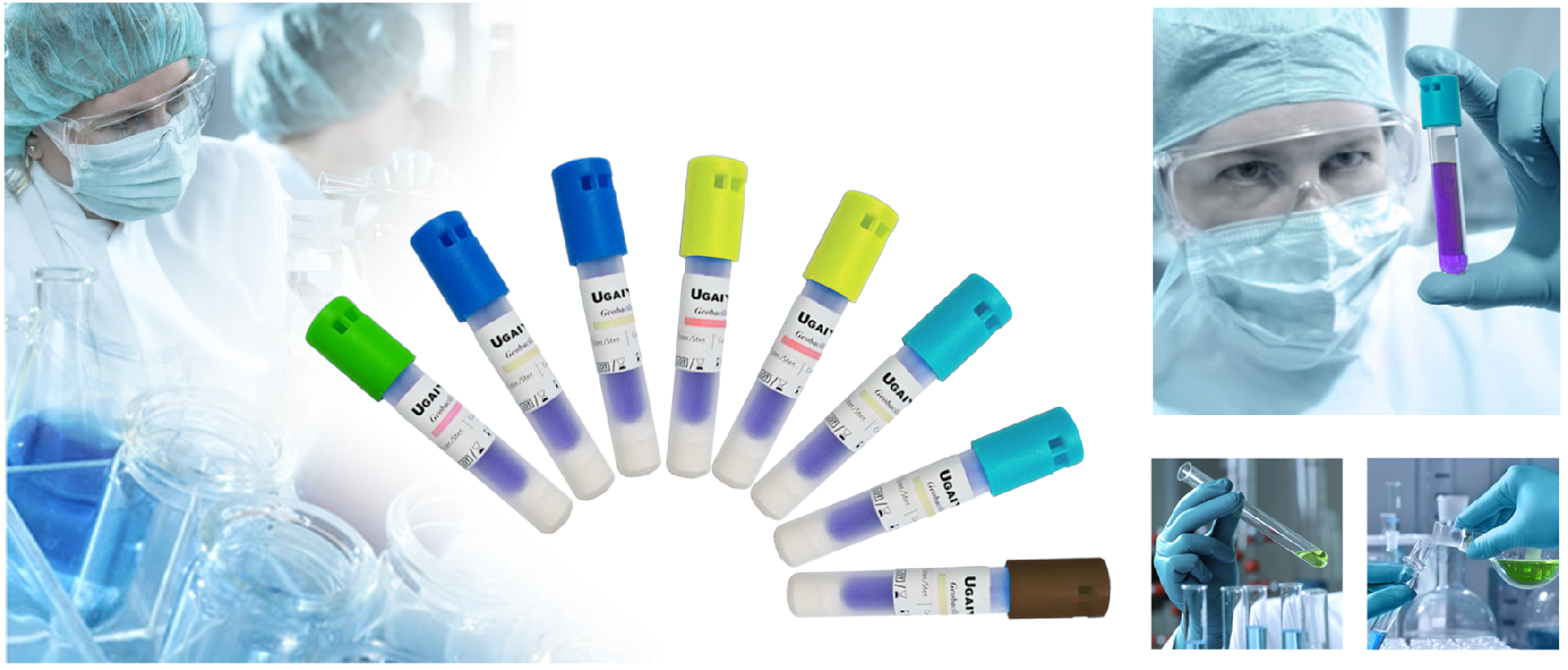

APPLICABLE BIOLOGICAL INDICATORS


Check out UGBI series Biological Indicators


Check out UGBI series Biological Indicators



FEATURES

Language

Multiple display and   printing languages including English, Spanish, Portuguese, etc.

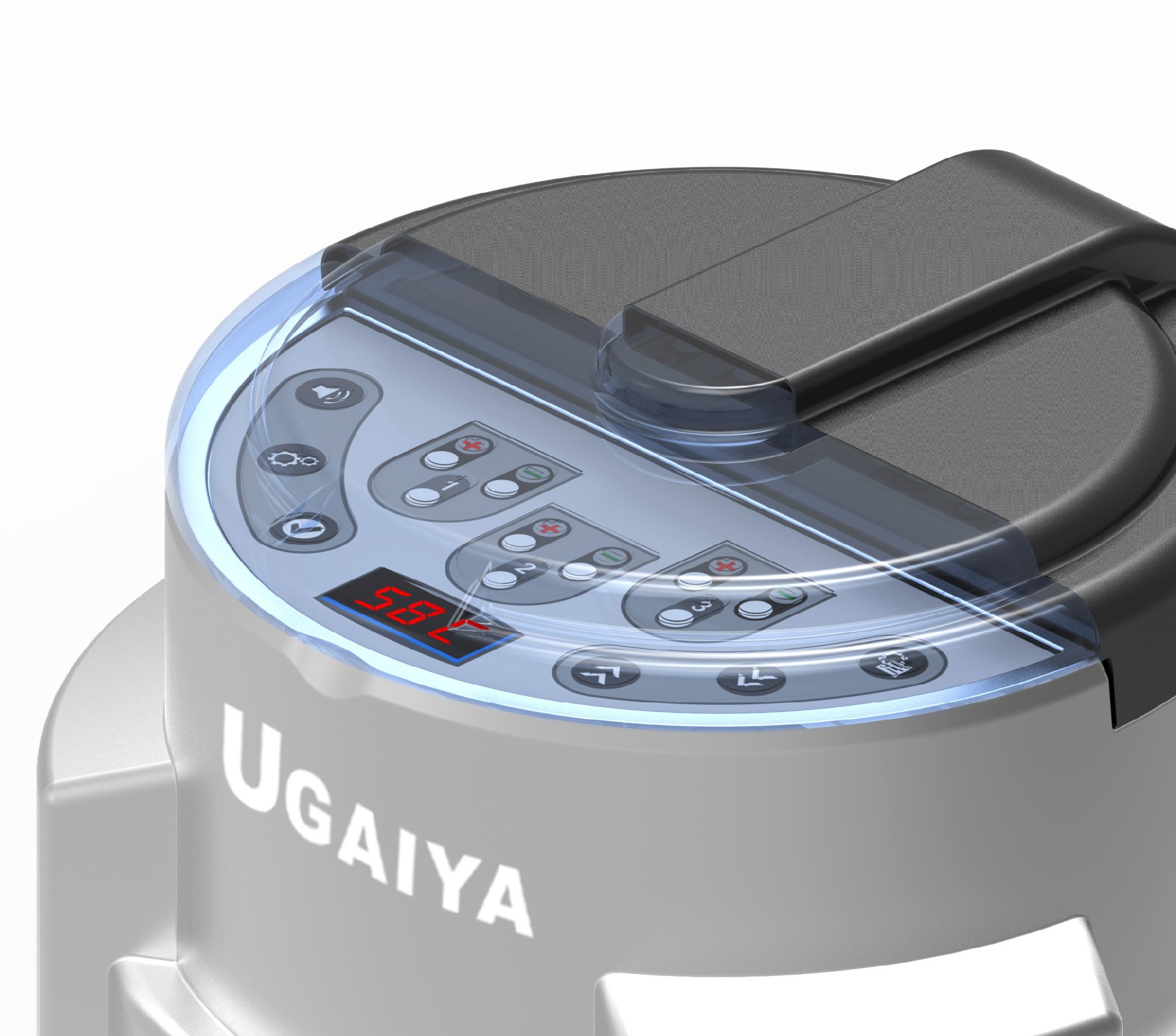

Display

Incubation time and   temperature are displayed at the
  same time for convenient checking.

Indication Light

Incubation results and   working status of the Reader are shown by the indication light.


Progress   Checking

Display the current   status, incubation countdown,
  fluorescence strength (percentage) and incubation result.







TECHNICAL PARAMETERS



Model

UG-AR400

UG-AR200

Applicable BI

UGBI0301, UGBI0101, UGBI0102,   UGBI0201, UGBI0103,   UGBI0401

Rated Power

20 W

20 W

Power Supply

DC 12V 3A

DC 12V 3A

Ambient Temp.

5°C – 40°C

5°C – 40°C

Ambient RH

≤95% (noncondensing)

≤95% (Noncondensing)

Ambient Pressure

Atmospheric Pressure

Atmospheric Pressure

Incubation Temp.

58±2°C (Adjustable) & 36±1°C

58±2°C (Adjustable) & 36±1°C

Judgment Time

4 – 240mins

(Varied from spore)

4 – 240mins

(Varied from spore)

Incubation Slots

8

3

Display & Control

7” TFT Touch Screen

Digital display and buttons

Net Weight

1 Kg

0.7Kg

Exterior Dimension

246 x 214 x 100mm

160 x 160 x 165mm

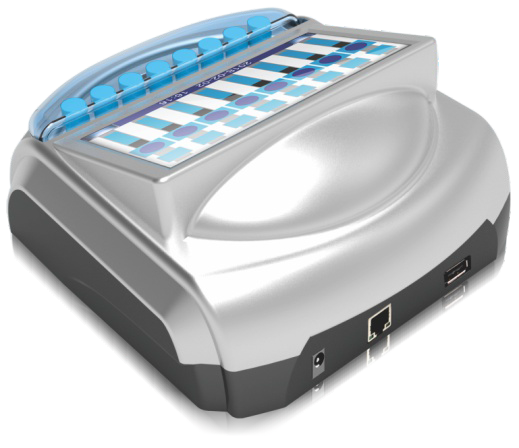

USB

Y

Y

LAN

Y

Y

Power Adapter Input

~100V – 240V 50/60Hz

~100V – 240V 50/60Hz

Power Adapter Output

DC 12V 3A

DC 12V 3A

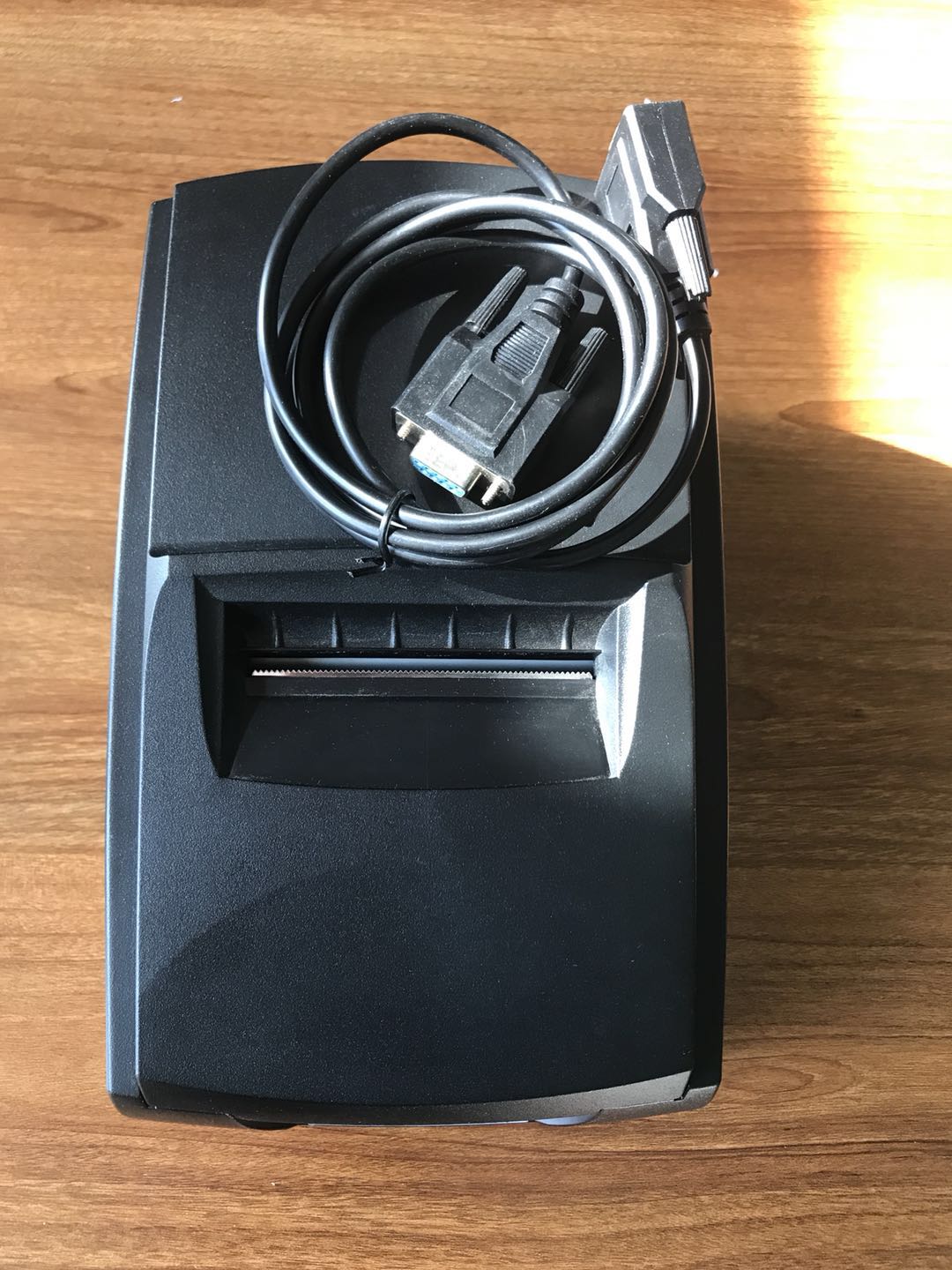

Printer

Build-out

Build-in

QR Code Reader

Build-in

Build-in
